3-Phase Voltage Transformer Model 3vt460-l-n

FREQUENCY:
60 HZ
 ACCURACY CLASS ( Per Phase ):
0.6 W, 1.2 X at 60 Hz.
STANDARD SECONDARY VOLTAGE:
120 Volts
 THERMAL RATING ( Per Phase ):
150 VA at 30° C. amb.,
100 VA at 55° C. amb.
INSULATION LEVEL:
600 Volt, 10 kV BIL full wave.
 1
Features
1 Terminals are brass studs No. 8-32 with one lockwasher, flatwasher and regular nut.
1 The core and coil assembly is encased in a thermoplastic shell and filled with resin.
1 These transformers are designed for open delta connection.
1 It is desirable to use a 1.6 amp fuse in the secondary to protect the transformer.
 1 Models 3vt460-380, 3vt460-400, 3vt460-416 designed specifically for 50 Hz operation are available with reduced performance - consult factory for details.
1Primary fuses are class CC rejection type.
1 This page contains a circle diagram for the estimation of the errors for other than rated burdens.
1 Approximate weight:15.5 lbs.

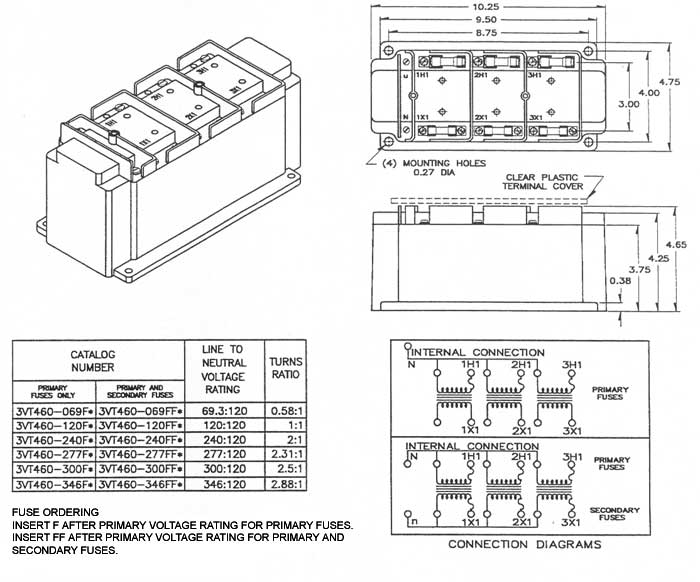

Voltage Transformer 3 Phase
Note: All Dimensions in inches
