IDENTIFICATION OF ENCLOSURES

Our standard enclosures are identified by a code number consisting of 3 figures:

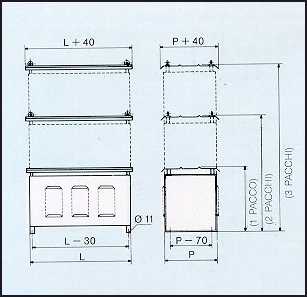

The first one indicates the type of the rod, and consequently the lenght L of the enclosure, the second one (CL or LR) indicates the type of the grids and consequently the width P of the enclosure, the third one indicates the number of assemblies and consequently the height H. The code 3CL2 (see table below) identifies an enclosures which dimensions are: lenght L=650mm, width P=500mm and height H=757mm.

The weight of the complete resistance is obtained by adding the weight of the enclosures to the one of the grids and increasing the total by the 10% for mounting and connecting accessories.

1

Enclosure __________Identification

1
Resistor element type CL





Enclosures for CL and RL grids
Enclosure
1CL1
2CL1
3CL1
4CL1
5CL1
6CL1
1CL2
2CL2
3CL2
4CL2
5CL2
6CL2
Max. Grids N°
14
18
22
32
38
43
28
36
44
64
76
86
L [mm]
460
550
650
850
990
1150
460
550
650
850
990
1150
P [mm]
500
500
500
500
500
500
500
500
500
500
500
500
H [mm]
400
400
400
400
400
400
755
755
755
755
755
755
Weight [Kg]
13
15
17
19
22
27
24
26
28
32
36
46
Enclosure
1CL3
2CL3
3CL3
4CL3
5CL3
6CL3
1CL4
2CL4
3CL4
4CL4
5CL4
6CL4
Max. Grids N°
42
54
66
93
114
129
56
72
88
128
152
172
L [mm]
460
550
650
850
990
1150
460
550
650
850
990
1150
P [mm]
500
500
500
500
500
500
500
500
500
500
500
500
H [mm]
1110
1110
1110
1110
1110
1110
1465
1465
1465
1465
1465
1465
Weight [Kg]
34
38
40
46
52
67
44
50
56
61
74
86
Enclosure
1RLV1
2RLV1
3RLV1
4RLV1
5RLV1
6RLV1
1RLV2
2RLV2
3RLV2
4RLV2
5RLV2
6RLV2
Max. Grids N°
12
16
22
30
36
40
24
32
44
60
72
80
L [mm]
460
550
650
850
990
1150
460
550
650
850
990
1150
P [mm]
500
500
500
500
500
500
500
500
500
500
500
500
H [mm]
755
755
755
755
755
755
1465
1465
1465
1465
1465
1465
Weight [Kg]
25
27
29
34
37
40
45
48
52
59
64
70
1
1

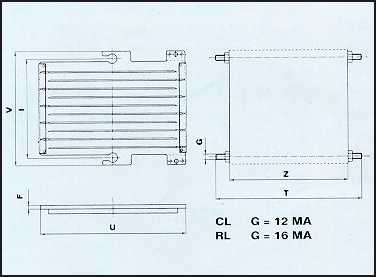

Overall dimensions of open assemblies

Tie Rod Type

Max N° of grids

T [mm]

Z [mm]

V [mm]

CL RL CL RL
1 14 13 410 330 244 520
2 18 17 500 420 244 520
3 23 21 600 520 244 520
4 32 30 800 720 244 520
5 39 36 940 860 244 520
6 46 40 1100 1030 - -
Grids Weight [Kg]
CL6 340
CL8 425
CL10 520
CL15 750
CL20 1000
RL6 1050
RL8 1250
RL15 1800
RL15 2420
Grids CL RL
U 321 321
F 10 10
I 212 468
V 244 520
On request I quote between 212 and 468
